Datasheet Wago 734-132/105-604/997-405 — Datenblatt
THR male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; in tape-and-reel packaging; Pin spacing 3.5 mm; 2-pole
Preise
Detaillierte Beschreibung
Parameter
| Color | black |
| Connector connection type | for PCBs |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Male connector/plug |
| Страна происхождения | DE |
| Depth | 8.5 mm / 0.335 inch |
| Fire load | 0.02 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4044918944953 |
| Height | 12.7 mm / 0.5 inch |
| Height from the surface | 10.3 mm / 0.406 inch |
| Insulating material | Polyphtalamide (PPA GF) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Material group | I |
| Mating direction to the PCB | 90 ° |
| Mismating protection | Yes |
| Number of Poles | 2 |
| Number of levels | 1 |
| Number of solder pins per potential | 1 |
| PCB contact | THR |
| Packaging type | bag |
| Pin spacing | 3.5 mm (0.138 inch) |
| Plated through-hole diameter (THR) | 1.4 (+ 0.1) mm |
| Rated current | 10 A |
| Rated impulse voltage (II / 2) | 2.5 kV |
| Rated impulse voltage (III / 2) | 2.5 kV |
| Rated impulse voltage (III / 3) | 2.5 kV |
| Rated voltage (II / 2) | 320 V |
| Rated voltage (III / 2) | 160 V |
| Rated voltage (III / 3) | 160 V |

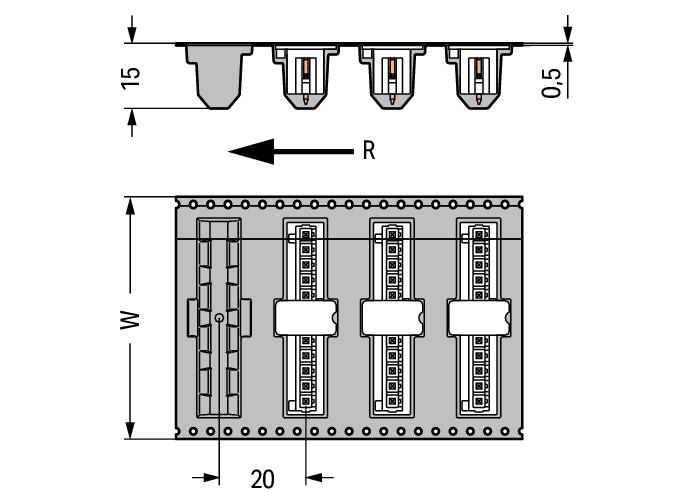

| Reel diameter of tape-and-reel packaging | 330 mm |
| Solder pin arrangement | over the entire male connector, in line |
| Solder pin dimensions | 1 x 1 mm |
| Solder pin length | 2.4 mm |
| Tape width | 32 mm |
| Total number of potentials | 2 |
| Weight | 0.576 g |
| Width | 9.4 mm / 0.37 inch |
Modellreihe
Serie: 734 (100 von 708)
- 734-110/008-000 734-110/037-000 734-110/107-000 734-111 734-111/008-000 734-111/037-000 734-111/037-000/034-000 734-111/107-000 734-112 734-112/008-000 734-112/037-000 734-112/107-000 734-113 734-113/008-000 734-113/037-000 734-113/037-000/035-000 734-113/107-000 734-114 734-114/008-000 734-114/037-000 734-114/037-000/035-000 734-114/107-000 734-116 734-116/008-000 734-116/037-000 734-116/037-000/035-000 734-116/107-000 734-118 734-118/008-000 734-118/037-000 734-118/037-000/036-000 734-118/107-000 734-120 734-120/008-000 734-120/037-000 734-120/037-000/036-000 734-120/107-000 734-124 734-124/008-000 734-124/037-000 734-124/037-000/036-000 734-124/107-000 734-126 734-127 734-128 734-129 734-130 734-132 734-132/046-000 734-132/105-604 734-132/105-604/997-405 734-132/108-000 734-133 734-133/010-000 734-133/046-000 734-133/105-604 734-133/105-604/997-405 734-133/108-000 734-134 734-134/010-000 734-134/046-000 734-134/105-604 734-134/105-604/997-405 734-134/108-000 734-135 734-135/010-000 734-135/046-000 734-135/105-604 734-135/105-604/997-405 734-135/108-000 734-136 734-136/010-000 734-136/046-000 734-136/105-604 734-136/105-604/997-407 734-136/108-000 734-137 734-137/010-000 734-137/046-000 734-137/105-604 734-137/105-604/997-407 734-137/108-000 734-138 734-138/010-000 734-138/046-000 734-138/105-604 734-138/105-604/997-407 734-138/108-000 734-139 734-139/010-000 734-139/046-000 734-139/105-604 734-139/105-604/997-407 734-139/108-000 734-140 734-140/046-000 734-140/105-604 734-140/105-604/997-407 734-140/108-000 734-141
Herstellerklassifikation
- PCB Interconnect | Pluggable Connection Systems
Andere Namen:
734132/105604/997405, 734 132/105 604/997 405
