Datasheet Wago 733-106/037-000 — Datenblatt

1-conductor female plug; 100% protected against mismating; Locking lever; 0.5 mm²; Pin spacing 2.5 mm; 6-pole

Preise

Wago 733-106/037-000

Actuation type	Operating tool
Clamping spring material	Chrome nickel spring steel (CrNi)
Color	light gray
Connection technology	CAGE CLAMP®
Connector connection type	for conductors
Contact material	Copper alloy
Contact plating	tin-plated
Contact type (pluggable connector)	Female connector/socket
Страна происхождения	DE

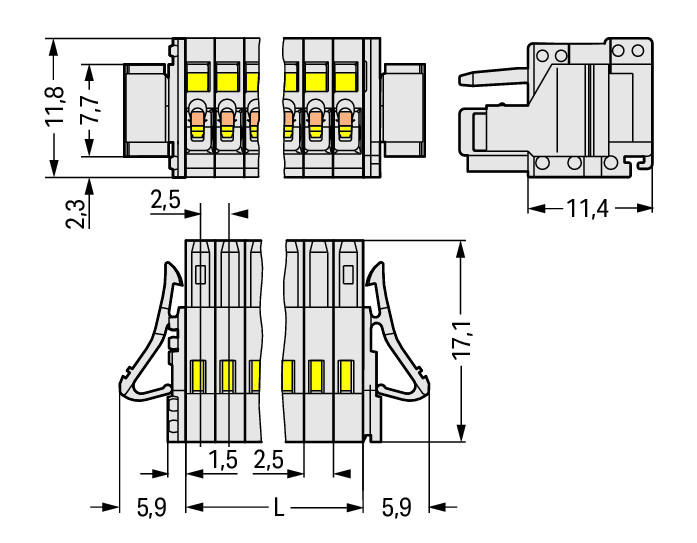

Depth	17.1 mm / 0.673 inch
Fine-stranded conductor	0.08 … 0.5 mm² / 28 … 20 AWG
Fine-stranded conductor with ferrule with plastic collar	0.25 … 0.34 mm²
Fine-stranded conductor with ferrule without plastic collar	0.25 … 0.34 mm²
Fire load	0.044 MJ
Flammability class per UL94	V0
Global Trade Item Number (GTIN)	4045454215620
Height	11.8 mm / 0.465 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +100 °C
Locking of plug-in connection	locking lever
Material group	I
Mismating protection	Yes
Number of Poles	6
Number of connection types	1
Number of levels	1
Pin spacing	2.5 mm (0.098 inch)
Product Group	3 (Multi Conn. System)

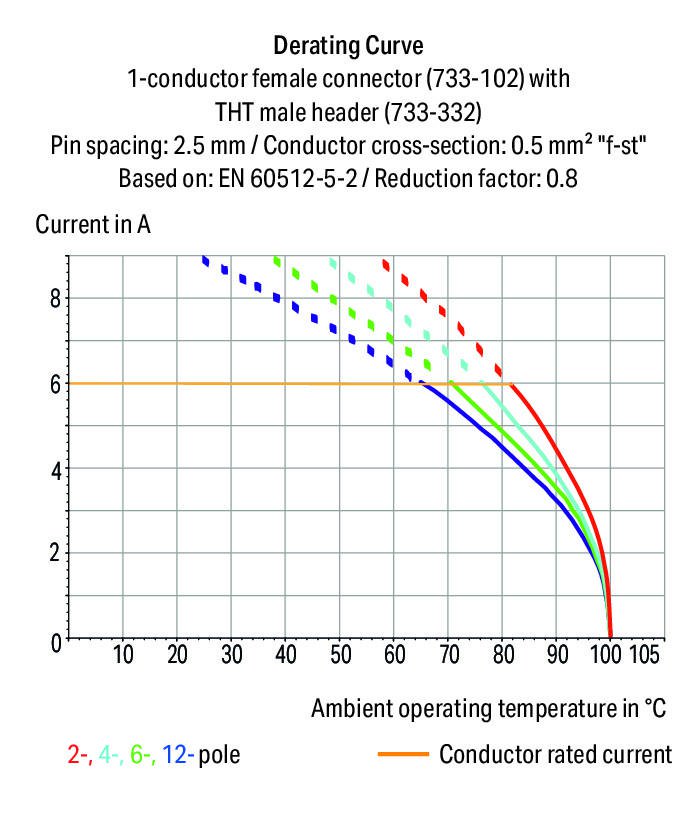

Rated current	6 A
Rated impulse voltage (II / 2)	2.5 kV
Rated impulse voltage (III / 2)	2.5 kV
Rated impulse voltage (III / 3)	2.5 kV
Rated voltage (II / 2)	320 V
Rated voltage (III / 2)	160 V
Rated voltage (III / 3)	100 V
Solid conductor	0.08 … 0.5 mm² / 28 … 20 AWG
Strip length	5 … 6 mm / 0.2 … 0.24 Inch
Total number of connection points	6
Total number of potentials	6
Weight	3.062 g
Width	26.8 mm / 1.055 inch
