Datasheet Wago 280-582 — Datenblatt

Hersteller	Wago
Serie	280
Artikelnummer	280-582

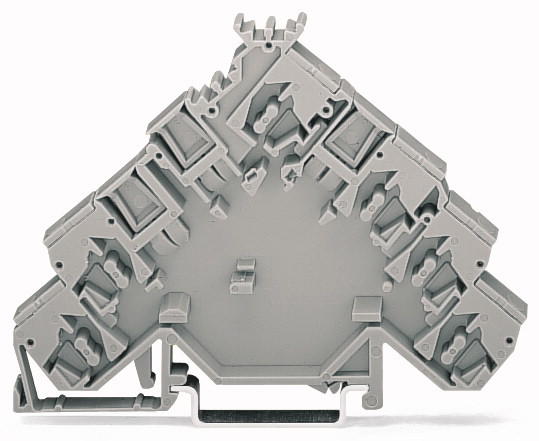

Spacer; same profile as 4-conductor sensor terminal blocks, 3-conductor sensor terminal blocks with ground contact or appropriate actuator terminal bloc

Preise

Parameter

Actuation type	Operating tool
Color	gray
Connectable conductor materials	Copper
Страна происхождения	DE
Depth	90.5 mm / 3.563 inch
Design	angled
Fire load	0.258 MJ
Global Trade Item Number (GTIN)	4017332151696
Height from upper-edge of DIN-35 rail	63.5 mm / 2.5 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center marking
Number of levels	4
Product Group	1 (Rail Mounted Terminal Blocks)
Type of mounting	DIN-35 rail
Weight	8.54 g
Width	5 mm / 0.197 inch

Modellreihe

Serie: 280 (100 von 409)

280-550 280-551 280-552 280-553 280-554 280-555 280-556 280-557 280-558 280-559 280-560 280-560/281-434 280-561 280-561/281-413 280-562 280-562/281-411 280-562/281-420 280-562/281-434 280-563 280-564 280-564/281-483 280-565 280-565/280-319 280-565/280-321 280-566 280-566/281-496 280-567 280-568 280-570 280-570/281-434 280-571 280-571/281-413 280-572 280-572/281-411 280-572/281-420 280-572/281-434 280-573 280-574 280-574/281-483 280-575 280-575/280-320 280-575/280-323 280-576 280-576/281-496 280-577 280-577/281-496 280-578 280-580 280-580/281-434 280-581/281-413 280-582 280-583 280-584 280-584/281-483 280-585 280-586 280-586/281-496 280-587 280-588 280-588/280-320 280-588/280-323 280-592 280-593 280-597 280-601 280-602 280-603 280-604 280-606 280-607 280-607/999-950 280-608 280-609 280-610 280-612 280-613/281-410 280-613/281-411 280-614 280-616 280-618 280-619 280-621 280-622 280-623/281-410 280-623/281-411 280-624/281-413 280-624/281-434 280-626 280-627 280-628 280-629 280-632 280-633 280-634 280-636 280-637 280-637/999-950 280-638 280-639 280-640

Herstellerklassifikation

Rail / Chassis Terminal blocks

Andere Namen:

280582, 280 582
