Datasheet Wago 709-310 — Datenblatt

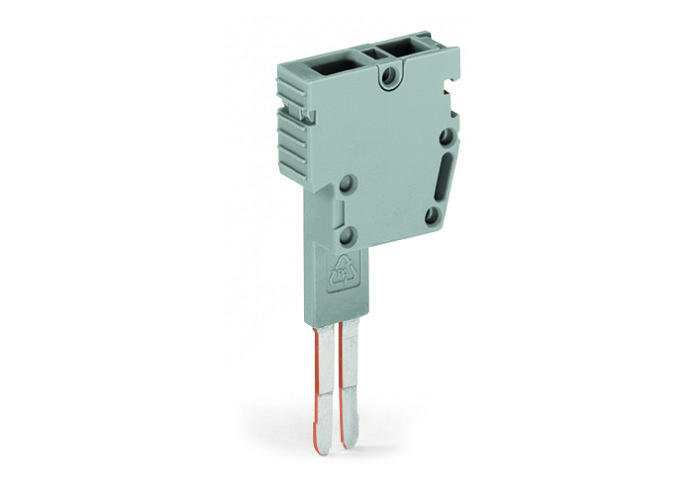

B-type test plug module; modular; suitable for all WAGO 282 Series rail-mounted terminal blocks with jumper slots
Preise
Detaillierte Beschreibung
Parameter
| Color | gray |
| Connection technology | CAGE CLAMP® |
| Страна происхождения | DE |
| Fine-stranded conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Fire load | 0.064 MJ |
| Global Trade Item Number (GTIN) | 4045454267773 |
| Marking level | Side marking |
| Number of Poles | 1 |
| Product Group | 2 (Terminal Block Accessories) |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 mm / 0.47 Inch |
| Test current | 32 A |
| Test voltage | 800 V |
| Total number of connection points | 1 |
| Total number of potentials | 1 |
| Type of wiring | Front-entry wiring |
| Weight | 4.933 g |
| Width | 8 mm / 0.315 inch |
Modellreihe
Serie: 709 (24)
Herstellerklassifikation
- Rail / Chassis Terminal blocks | Pluggable Connection Systems
Andere Namen:
709310, 709 310
