Datasheet Wago 2002-511 — Datenblatt

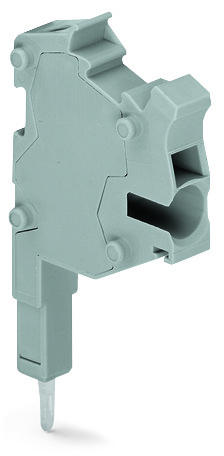

TOPJOB S modular connector; for 2002 series; for jumper contact slot; 1-pole; gray
Preise
Parameter
| Color | gray |
| Connection technology | Push-in CAGE CLAMP® |
| Страна происхождения | DE |
| Fine-stranded conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 0.75 mm² / 18 AWG |
| Fire load | 0.051 MJ |
| Global Trade Item Number (GTIN) | 4044918924849 |
| Insulating material | Polyamide 66 (PA 66) |
| Marking level | Center/side marking |
| Nominal cross section | 2.5 mm² |
| Number of Poles | 1 |
| Product Group | 22 (TOPJOB S) |
| Rated current | 24 A |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (III / 3) | 500 V |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Solid conductor, push-in termination | 0.75 … 4 mm² / 18 … 12 AWG |
| Strip length | 10 … 12 mm / 0.39 … 0.47 Inch |
| Total number of connection points | 1 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Weight | 2.745 g |
| Width | 5.2 mm / 0.205 inch |
