Datasheet Wago 870-523/281-587 — Datenblatt

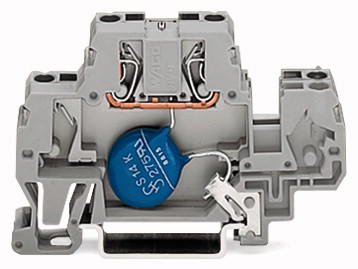

Terminal blocks with varistor; 115 VAC
Preise
Parameter
| Capacitance | ≤ 0.57 nF |
| Color | gray |
| Connection technology | CAGE CLAMP® |
| Connections (number) | 2 |
| Страна происхождения | DE |
| Depth | 70 mm / 2.756 inch |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Global Trade Item Number (GTIN) | 4045454353698 |
| Height from upper-edge of DIN-35 rail | 40 mm / 1.575 inch |
| Max. discharge current | 4.5 |
| Maximum continuous operating voltage | 150 VAC |
| Nominal discharge current (8/20 µs) per line | 1 kA |
| Nominal operating voltage | 115 VAC |
| Product Group | 16 (Rail Mounted Terminal Block with CCC) |
| Rated continuous current | 20 A |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 6 … 7 mm / 0.24 … 0.28 Inch |
| Type of mounting | DIN-35 rail |
| Voltage protection level (8/20 μs) | ≤ 395 VAC |
| Weight | 12.2 g |
| Width | 10 mm / 0.394 inch |
