Datasheet Wago 769-208/281-411 — Datenblatt

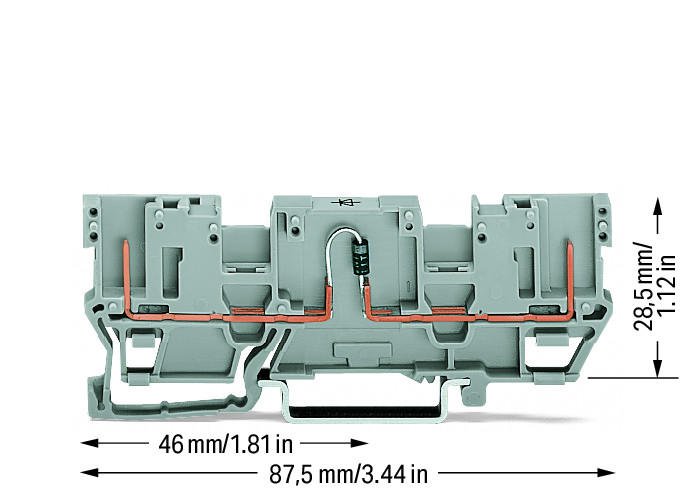

2-pin diode carrier terminal block; anode, right side; with 2 jumper positions
Preise
Detaillierte Beschreibung
Parameter
| Color | gray |
| Страна происхождения | DE |
| Depth | 87.5 mm / 3.445 inch |
| Design | horizontal |
| Fire load | 0.17 MJ |
| Global Trade Item Number (GTIN) | 4045454198374 |
| Height from upper-edge of DIN-35 rail | 28.5 mm / 1.122 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Marking level | Center marking |
| Nominal voltage | 250 V |
| Number of levels | 1 |
| Product Group | 18 (X-COM-System) |
| Reverse voltage | 1000 V |
| Total number of potentials | 1 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Front-entry wiring |
| Weight | 7.718 g |
| Width | 5 mm / 0.197 inch |
Modellreihe
Serie: 769 (100 von 460)
- 769-126 769-127 769-128 769-129 769-130 769-131 769-132 769-133 769-134 769-135 769-151 769-156 769-1602 769-1603 769-1604 769-1605 769-1606 769-1607 769-1608 769-1609 769-161 769-1610 769-1611 769-1612 769-1613 769-1614 769-1615 769-162/769-313 769-163/769-313 769-164/769-313 769-165/769-313 769-171 769-171/000-006 769-176 769-176/000-006 769-181 769-182/769-314 769-183/769-314 769-184/769-314 769-185/769-314 769-191 769-192/769-319 769-193/769-319 769-194/769-319 769-195/769-319 769-201 769-202 769-203 769-207 769-208/281-410 769-208/281-411 769-209/281-413 769-209/281-434 769-211 769-212 769-213 769-214 769-217 769-218/281-410 769-218/281-411 769-219/281-413 769-219/281-434 769-221 769-222 769-223 769-227 769-228/281-410 769-228/281-411 769-229/281-413 769-229/281-434 769-231 769-232 769-233 769-237 769-238/281-410 769-238/281-411 769-239/281-413 769-239/281-434 769-242 769-243 769-251 769-251/000-006 769-257 769-301 769-302 769-303 769-304 769-305 769-306 769-307 769-308 769-309 769-310 769-311 769-312 769-313 769-314 769-315 769-316 769-317
Herstellerklassifikation
- Rail / Chassis Terminal blocks | Pluggable Connection Systems
Andere Namen:
769208/281411, 769 208/281 411
