Datasheet Wago 272 — Datenblatt

Hersteller	Wago
Serie	272

Preise

Detaillierte Beschreibung

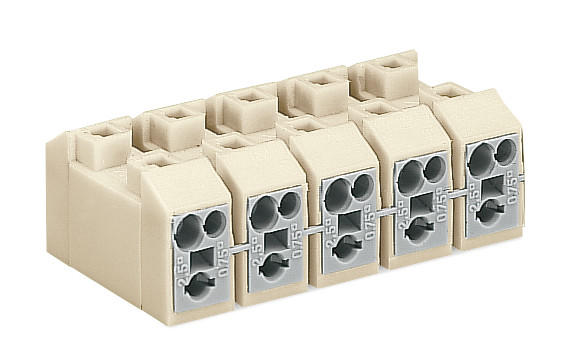

Wago 272

Parameter

Parameters / Models	272-101	272-102	272-102/001-000	272-103	272-103/001-000	272-103/101-000	272-103/104-000	272-103/108-000	272-103/120-000	272-103/201-000	272-103/220-000	272-104	272-104/001-000	272-104/101-000	272-104/201-000	272-105	272-105/001-000	272-105/101-000	272-105/130-000	272-105/150-000	272-105/201-000	272-105/203-000	272-122	272-122/001-000	272-122/014-000	272-131	272-132	272-133	272-133/101-000	272-133/106-000	272-133/130-000	272-133/201-000	272-133/203-000	272-133/220-000	272-133/230-000	272-134	272-134/201-000	272-134/203-000	272-135	272-135/101-000	272-135/104-000	272-135/201-000	272-135/203-000	272-301	272-302	272-303	272-304	272-305	272-312	272-402/272-488	272-403/272-486	272-403/272-489	272-403/272-496	272-404/272-490	272-405/272-491	272-405/272-514	272-413/272-419	272-413/272-489	272-415/272-491	272-452	272-453/272-469	272-453/272-485	272-454/272-485	272-455/272-485	272-492	272-493	272-494	272-495	272-497	272-498	272-516	272-517	272-537	272-581	272-582	272-583	272-584	272-585	272-681	272-682	272-683	272-683/120-000	272-684	272-684/203-000	272-685	272-685/130-000
Color	white	white	white	white	white	white				white		white	white			white	white						white	white		white	white	white								white			white											white/gray	white/gray	white/gray	white/gray	white/gray	white/gray	white/gray	white/gray	white/gray	white/gray	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white		white		white
Connection technology	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®										PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®	PUSH WIRE®
Страна происхождения	DE	PL	PL	PL	PL	DE	DE	DE	DE	DE	DE	PL	PL	DE	DE	PL	PL	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE			DE				DE	DE		DE			DE	DE	DE	PL	PL	DE	PL	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE	DE		DE	DE
Depth	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	30 mm / 1.18 inch	30 mm / 1.18 inch	30 mm / 1.18 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	35.95 mm / 1.415 inch	35.95 mm / 1.415 inch	35.95 mm / 1.415 inch	35.95 mm / 1.415 inch	35.95 mm / 1.415 inch	35.95 mm / 1.415 inch	35.95 mm / 1.415 inch	46.15 mm / 1.817 inch	46.15 mm / 1.817 inch	46.15 mm / 1.817 inch	34 mm / 1.339 inch	34 mm / 1.339 inch	34 mm / 1.339 inch	34 mm / 1.339 inch	34 mm / 1.339 inch										24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch	24.5 mm / 0.965 inch
Fire load, MJ	0.047	0.096	0.096	0.143	0.143	0.142	0.142	0.142	0.142	0.142	0.142	0.192	0.192	0.189	0.189	0.234	0.234	0.236	0.236	0.236	0.236	0.236	0.241	0.241	0.241	0.054	0.108	0.162	0.162	0.162	0.162	0.162	0.162	0.162	0.162	0.216	0.216	0.216	0.27	0.27	0.27	0.27	0.27	0.113	0.107	0.145	0.211	0.261	1.359	0.278	0.398	0.402	0.398	0.525	0.752	0.742	0.413	0.412	0.773	0.103	0.155	0.155	0.206	0.309			0.117	0.165	0.095	0.02		0.124	0.079	0.048	0.096	0.143	0.191	0.287	0.054	0.109	0.164	0.164	0.218	0.218	0.273	0.273
Global Trade Item Number (GTIN)	4044918436298	4044918396394	4044918396424	4044918396479	4044918396523	4044918436618	4044918436632	4044918436656	4044918436670	4044918436694	4044918436724	4044918396547	4044918396592	4044918437028	4044918437042	4044918396646	4044918396684	4044918437332	4044918437356	4044918437370	4044918437394	4044918437417	4044918396820	4044918407069	4044918407199	4044918429382	4044918429429	4044918429566	4044918429757	4044918429771	4044918429795	4044918429818	4044918429832	4044918429856	4044918429887	4044918429924	4044918430074	4044918430098	4044918430128	4044918430258	4044918430272	4044918430296	4044918430319	4044918439497	4044918397094	4044918397155	4044918439688	4044918397209	4044918440349	4044918406031	4044918406161	4044918406178	4044918406222	4044918406338	4044918406789	4044918406949	4044918396165	4044918396202	4044918396240	4044918431392	4044918431545	4044918431682	4044918432047	4044918432603	4045454356187	4045454356217	4017332271745	4017332271752	4017332271509	4017332271516	4045454356224	4017332271738	4017332271721	4044918435574	4044918435598	4044918435734	4044918435826	4044918443647	4044918434423	4044918434461	4044918434584	4044918434669	4044918434720	4044918434799	4044918434812	4044918434935
Height	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19 mm / 0.748 inch	19 mm / 0.748 inch	19 mm / 0.748 inch	19 mm / 0.748 inch	19 mm / 0.748 inch	19 mm / 0.748 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch										15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	15.3 mm / 0.602 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch	19.5 mm / 0.767 inch
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2										(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Number of Poles	1	2	2	3	3	3	3	3	3	3	3	4	4	4	4	5	5	5	5	5	5	5	5	5	5	1	2	3	3	3	3	3	3	3	3	4	4	4	5	5	5	5	5	1	2	3	4	5	12	2	3	3	3	4	5	5	3	3	5	2	3	3	4	5										1	2	3	4	5	1	2	3	3	4	4	5	5
Number of connection types	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1										1	1	1	1	1	1	1	1	1	1	1	1	1
Packaging type	bag	bag	bag	bag	bag	bag	bag			bag		bag	bag		bag	bag	bag	bag	bag	bag		bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag		bag	bag	bag	bag	bag	bag	bag	bag		bag	bag	bag	bag	bag	bag	bag		bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag	bag
Product Group	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)		8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)		8 (Misc. Chassis Mount Blocks)		8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)			8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)		8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)						8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)	8 (Misc. Chassis Mount Blocks)
Rated current, A	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	26	26	26	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	18	16	16	16	16	16	16	16	16	16	16	16	16	16	16	16										26	26	26	26	26	26	26	26	26	26	26	26	26
Rated current (2), A																																																									6	6	6
Rated impulse voltage (II / 2), kV																																																		4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Rated impulse voltage (III / 2), kV	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4										4	4	4	4	4	4	4	4	4	4	4	4	4
Rated voltage (II / 2), V																																																		400	400	400	400	400	400	400	400	400	400	400	400	400	400	400
Rated voltage (III / 2), V	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	400	200	200	200	200	200	200	200	200	200	200	200	200	200	200	200										400	400	400	400	400	400	400	400	400	400	400	400	400
Solid conductor																																												0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG	0.5 … 1.5 mm² / 20 … 16 AWG
Solid conductor (2)																																												0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG	0.5 … 2.5 mm² / 20 … 14 AWG
Strip length	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch										8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch	8 … 9 mm / 0.31 … 0.35 Inch
Total number of connection points	4	8	8	12	12	12	12	12	12	12	12	16	16	16	16	20	20	20	20	20	20	20	20	20	20	4	8	12	12	12	12	12	12	12	12	16	16	16	20	20	20	20	20	4	8	12	16	20	48	4	6	6	6	8	10	10	6	6	10	4	6	6	8	10										4	8	12	16	20	4	8	12	12	16	16	20	20
Total number of potentials	1	2	2	3	3	3	3	3	3	3	3	4	4	4	4	5	5	5	5	5	5	5	5	5	5	1	2	3	3	3	3	3	3	3	3	4	4	4	5	5	5	5	5	1	2	3	4	5	12	2	3	3	3	4	5	5	3	3	5	2	3	3	4	5										1	2	3	4	5	1	2	3	3	4	4	5	5
Weight, g	2.96	5.854	5.854	8.776	8.776	9.597	9.57	9.597	9.325	9.851	9.851	11.738	11.738	12.576	12.83	14.47	14.47	15.6	15.551	15.551	15.747	15.805	14.95	14.888	14.95	3.185	6.45	9.58	10.214	10.214	10.214	10.468	10.468	10.468	10.468	13.03	13.653	13.653	15.92	16.58	16.56	16.86	16.835	3.1	6.217	8.83	12.678	15.378	37.67	8.57	12.005	12.1	12	15.865	19.6	19.02	14.568	13.5	22.9	7.026	11.315	10.458	13.96	18	6.13	7.1	3.898	5.51	3.25	4.54	7.859	4.56	2.64	3.065	6.042	8.9	11.86	14.76	3.132	6.265	9.53	10.069	12.535	13.46	16.4	16.67
Width	8.5 mm / 0.335 inch	18.5 mm / 0.728 inch	18.5 mm / 0.728 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	38.5 mm / 1.516 inch	38.5 mm / 1.516 inch	38.5 mm / 1.516 inch	38.5 mm / 1.516 inch	48.5 mm / 0.602 inch	48.5 mm / 0.602 inch	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch	25 mm / 0.984 inch	25 mm / 0.984 inch	25 mm / 0.984 inch	8.5 mm / 0.335 inch	18.5 mm / 0.728 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	38.5 mm / 1.516 inch	38.5 mm / 1.516 inch	38.5 mm / 1.516 inch	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch	8.5 mm / 0.335 inch	18.5 mm / 0.728 inch	28.5 mm / 1.122 inch	38.5 mm / 1.516 inch	48.5 mm / 1.909 inch	118.5 mm / 4.665 inch	23 mm / 0.906 inch	33 mm / 1.299 inch	33 mm / 1.299 inch	33 mm / 1.299 inch	43 mm / 1.693 inch	53 mm / 2.087 inch	53 mm / 2.087 inch	33 mm / 1.299 inch	33 mm / 1.299 inch	53 mm / 2.087 inch	23 mm / 0.906 inch	33 mm / 1.299 inch	33 mm / 1.299 inch	43 mm / 1.693 inch	53 mm / 2.087 inch										8.5 mm / 0.335 inch	18.5 mm / 0.728 inch	28.5 mm / 1.122 inch	38.5 mm / 1.516 inch	48.5 mm / 1.909 inch	8.5 mm / 0.335 inch	18.5 mm / 0.728 inch	28.5 mm / 1.122 inch	28.5 mm / 1.122 inch	38.5 mm / 1.516 inch	38.5 mm / 1.516 inch	48.5 mm / 1.909 inch	48.5 mm / 1.909 inch
