Datasheet Wago 785 — Datenblatt

HerstellerWago
Serie785
Datasheet Wago 785

Preise

Parameter

Parameters / Models785-601
785-601
785-604
785-604
785-607
785-607
785-623
785-623
Actuation typeOperating toolOperating toolOperating toolOperating tool

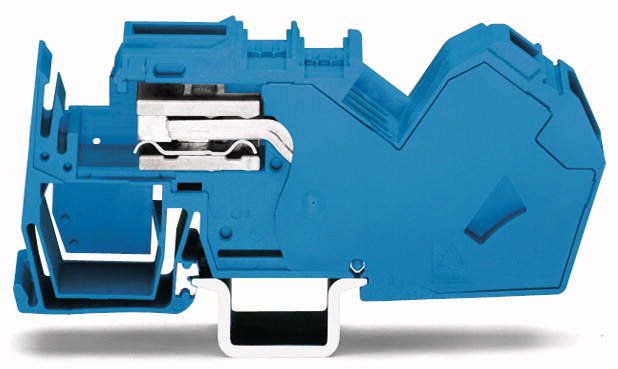

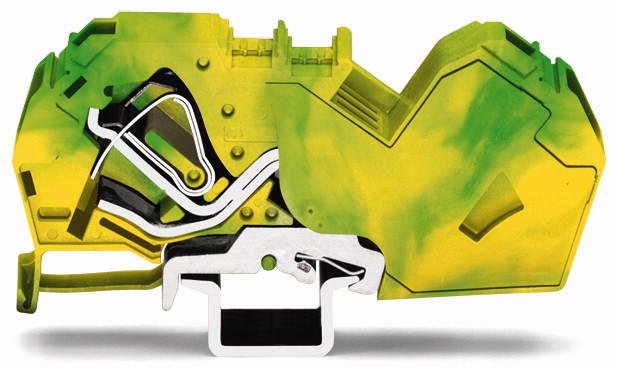

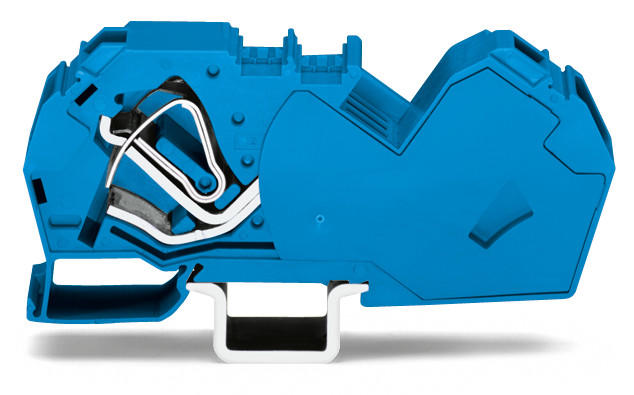

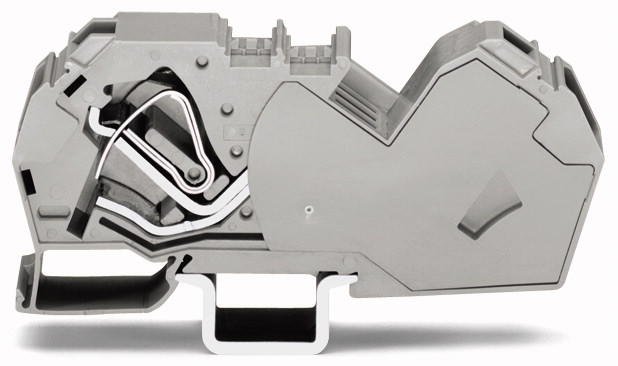

Colorgraybluegreen-yellowgray
Connectable conductor materialsCopperCopperCopperCopper
Connection technologyCAGE CLAMP®CAGE CLAMP®CAGE CLAMP®CAGE CLAMP®
Страна происхожденияDEDEDEDE
Depth114 mm / 4.488 inch114 mm / 4.488 inch114 mm / 4.488 inch116.5 mm / 4.587 inch
Designangledangledangledangled
Fire load, MJ1.1031.103
Global Trade Item Number (GTIN)4045454400576404545440058340454549026504045454601898
Height from upper-edge of DIN-35 rail44.5 mm / 1.752 inch44.5 mm / 1.752 inch44.5 mm / 1.752 inch44.5 mm / 1.752 inch
Insulating materialPolyamide 66 (PA 66)Polyamide 66 (PA 66)Polyamide 66 (PA 66)
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3(III / 3) ≙ Overvoltage category III / Pollution degree 3(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking levelCenter/side markingCenter/side markingCenter/side markingCenter/side marking
Number of levels1111
Product Group17 (TOP JOB installation terminal blocks)17 (TOP JOB installation terminal blocks)17 (TOP JOB installation terminal blocks)17 (TOP JOB installation terminal blocks)
Rated current, A125125125
Rated impulse voltage (III / 3), kV886
Rated voltage (III / 3), V10001000400
Solid conductor6 … 35 mm² / 8 … 2 AWG6 … 35 mm² / 8 … 2 AWG6 … 35 mm² / 8 … 2 AWG6 … 35 mm² / 8 … 2 AWG
Strip length23 mm / 0.91 Inch23 mm / 0.91 Inch23 mm / 0.91 Inch23 mm / 0.91 Inch
Total number of connection points2221
Total number of potentials1111
Type of mountingDIN-35 railDIN-35 railDIN-35 railDIN-35 rail
Type of wiringFront-entry wiringFront-entry wiringFront-entry wiringFront-entry wiring
Weight, g86.61587.195110.15391.47
Width16 mm / 0.63 inch16 mm / 0.63 inch16 mm / 0.63 inch16 mm / 0.63 inch

Modellreihe

Herstellerklassifikation

  • Rail / Chassis Terminal blocks
