Datasheet Wago 222 — Datenblatt

Hersteller	Wago
Serie	222

Preise

Parameter

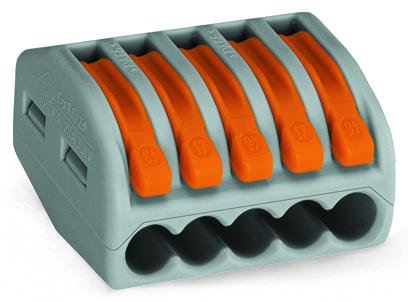

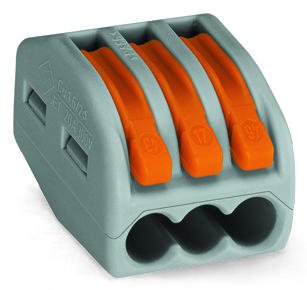

Parameters / Models	222-412	222-413	222-415	222-500	222-505	222-510
Actuation type	Lever	Lever	Lever
Color	gray	gray	gray	orange	orange	gray
Connectable conductor materials, Aluminum	Copper	Copper	Copper
Connection technology	CAGE CLAMP®	CAGE CLAMP®	CAGE CLAMP®
Страна происхождения	DE	DE	DE	DE	DE	DE
Depth	20.5 mm / 0.807 inch	20.5 mm / 0.807 inch	20.5 mm / 0.807 inch	66 mm / 2.598 inch	67.5 mm / 2.657 inch	42 mm / 1.654 inch
Fine-stranded conductor	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG	0.08 … 4 mm² / 28 … 12 AWG
Fire load, MJ	0.067	0.088	0.13	0.326	0.162	0.118
Flammability class per UL94	V2	V2	V2
Global Trade Item Number (GTIN)	4050821346470	4017332955676	4044918464956	4045454714765	4045454714789	4045454714802
Height	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch	14.5 mm / 0.571 inch
Height from upper-edge of DIN-35 rail				26 mm / 1.024 inch	52 mm / 2.047 inch	21.5 mm / 0.846 inch
Legend (ratings)	(II / 2) ≙ Overvoltage category II / Pollution degree 2	(II / 2) ≙ Overvoltage category II / Pollution degree 2	(II / 2) ≙ Overvoltage category II / Pollution degree 2
Product Group		7 (Push Wire Conn.)	7 (Push Wire Conn.)	7 (Push Wire Conn.)	7 (Push Wire Conn.)	7 (Push Wire Conn.)
Rated current, A	32	32	32
Rated impulse voltage (II / 2), kV	4	4	4
Rated voltage (II / 2), V	400	400	400
Solid conductor	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG
Stranded conductor	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG	0.08 … 2.5 mm² / 28 … 12 AWG
Strip length	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch	9 … 10 mm / 0.35 … 0.39 Inch
Surrounding air (operating) temperature	40 °C	40 °C	40 °C
Total number of connection points	2	3	5
Total number of potentials	1	1	1
Type of wiring	Side-entry wiring	Side-entry wiring	Side-entry wiring
Weight, g	3.053	4.283	6.581	10.88	5.4	3.92
Width	12.4 mm / 0.488 inch	17 mm / 0.669 inch	26.6 mm / 1.047 inch	22 mm / 0.866 inch	4 mm / 0.157 inch	18.5 mm / 0.728 inch
