Datasheet Wago 784-604 — Datenblatt

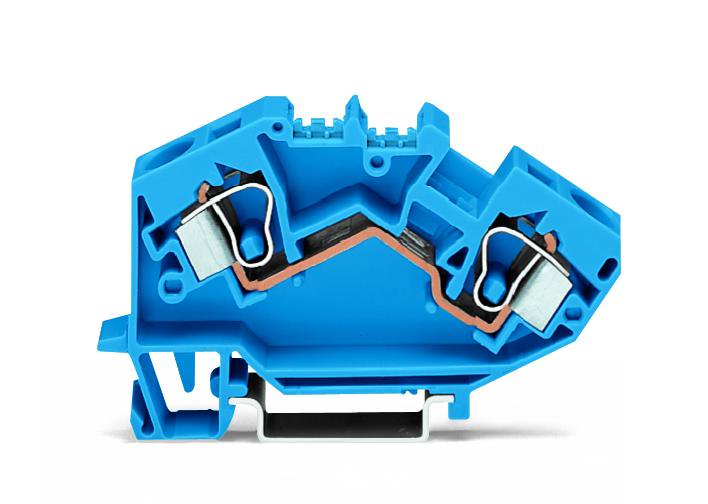

2-conductor through terminal block; 10 mm²; suitable for Ex i applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP

Preise

Actuation type	Operating tool
Color	blue
Connectable conductor materials	Copper
Connection technology	CAGE CLAMP®
Страна происхождения	DE
Depth	82.5 mm / 3.248 inch
Design	angled
Fine-stranded conductor	0.2 … 10 mm² / 24 … 8 AWG
Fine-stranded conductor (2)	0.2 … 16 mm² / 24 … 6 AWG
Fire load	0.357 MJ
Global Trade Item Number (GTIN)	4044918805995
Height from upper-edge of DIN-35 rail	43.5 mm / 1.713 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center marking
Number of levels	1
Rated current	57 A
Rated impulse voltage (III / 3)	8 kV
Rated voltage (III / 3)	1000 V
Solid conductor	0.2 … 10 mm² / 24 … 8 AWG
Solid conductor (2)	0.2 … 16 mm² / 24 … 6 AWG
Strip length	12 … 13 mm / 0.47 … 0.51 Inch
Total number of connection points	2
Total number of potentials	1
Type of mounting	DIN-35 rail
Type of wiring	Front-entry wiring
Weight	23.05 g
Width	10 mm / 0.394 inch

Serie: 784 (6)

784604, 784 604
