Datasheet Wago 280-502/281-588 — Datenblatt

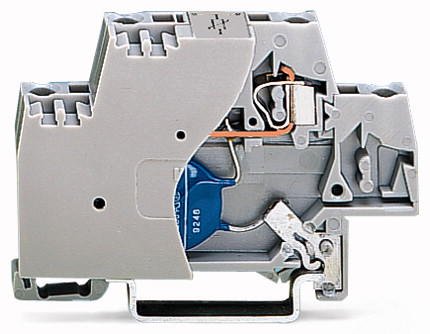

Terminal block with varistor and end plate; with direct connection to DIN rail; 230 VAC
Preise
Parameter
| Capacitance | ≤ 0.32 nF |
| Color | gray |
| Connection technology | CAGE CLAMP® |
| Connections (number) | 2 |
| Страна происхождения | DE |
| Depth | 64 mm / 2.52 inch |
| Design | With end plate; with direct connection to DIN rail |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Global Trade Item Number (GTIN) | 4045454368401 |
| Height from upper-edge of DIN-35 rail | 39.5 mm / 1.555 inch |
| Max. discharge current | 4.5 |
| Maximum continuous operating voltage | 275 VAC |
| Nominal discharge current (8/20 µs) per line | 1 kA |
| Nominal operating voltage | 230 VAC |
| Product Group | 1 (Rail Mounted Terminal Blocks) |
| Rated continuous current | 20 A |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 Inch |
| Type of mounting | DIN-35 rail |
| Voltage protection level (8/20 μs) | ≤ 710 VAC |
| Weight | 13.081 g |
| Width | 10 mm / 0.394 inch |
