Datasheet Wago 2002-2408 — Datenblatt

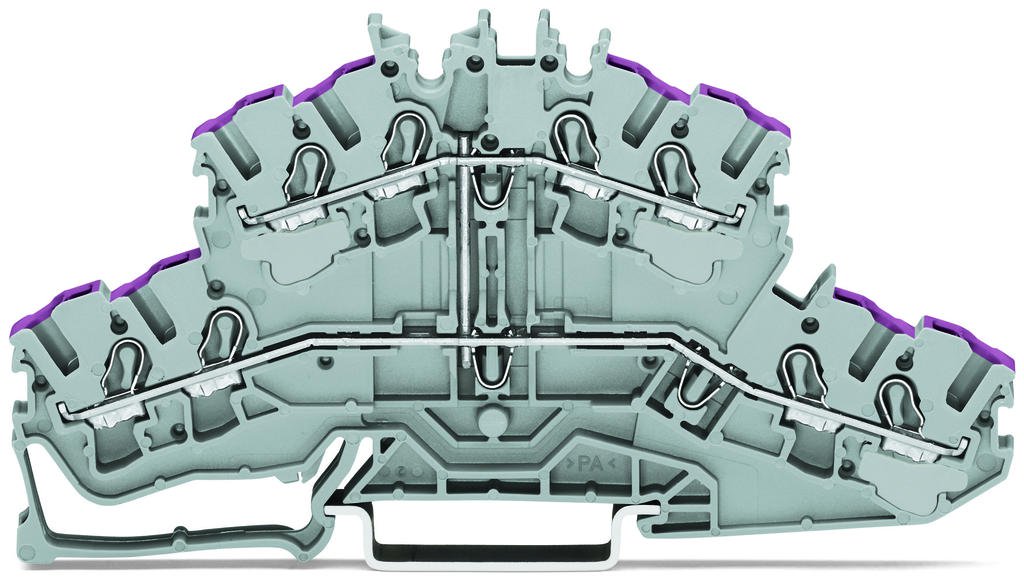

TOPJOB S double-deck terminal block; internally commoned; rail mount; 8-conductor; 5.2 mm wide; gray

Preise

Actuation type	Open Tool Slot
Color	gray
Connectable conductor materials	Copper
Connection technology	Push-in CAGE CLAMP®
Страна происхождения	CN
Depth	105.1 mm / 4.138 inch
Design	horizontal
Fine-stranded conductor	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor with ferrule, push-in termination, from	0.75 mm² / 18 AWG
Fire load	0.294 MJ
Global Trade Item Number (GTIN)	4050821145011
Height from upper-edge of DIN-35 rail	52.1 mm / 2.051 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Center/side marking
Nominal cross section	2.5 mm²
Number of levels	2
Potential marking	L
Product Group	22 (TOPJOB S)
Rated current	24 A
Rated current (2)	28 A
Rated impulse voltage (III / 3)	8 kV
Rated voltage (III / 3)	800 V
Solid conductor	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor, push-in termination	0.75 … 4 mm² / 18 … 12 AWG
Strip length	10 … 12 mm / 0.39 … 0.47 Inch
Total number of connection points	8
Total number of potentials	1
Type of mounting	DIN-35 rail
Type of wiring	Front-entry wiring
Weight	16.142 g
Width	5.2 mm / 0.205 inch
