Datasheet D83A - BI Technologies/TT Electronics DIODE, NETWORK ISOLATED — Datenblatt

Detaillierte Beschreibung

Manufacturer: BI Technologies/TT Electronics

Description: DIODE, NETWORK ISOLATED

Download Data Sheet

Docket:

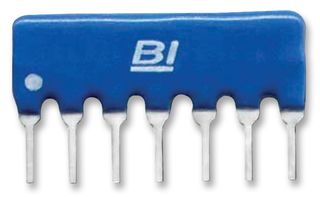

DIODE NETWORKS D SERIES
Single-In-Line Conformal Coated RoHS Compliant
FEATURES
· · ·
4 to 14 Leads Multiple circuit configurations Space saving design

Specifications:

• Current Ifsm: 300 mA
• Diode Type: Isolated
• Forward Current If(AV): 100 mA
• Forward Surge Current Ifsm Max: 300 mA
• Forward Voltage VF Max: 1.2 V
• Mounting Type: Through Hole
• Number of Pins: 8
• Operating Temperature Range: -25°C to +80°C
• Package / Case: SIP
• Repetitive Reverse Voltage Vrrm Max: 80 V
• Reverse Recovery Time trr Max: 4 ns
• Reverse Recovery Time trr Typ: 4 ns
• SVHC: No SVHC (15-Dec-2010)

RoHS: Yes
